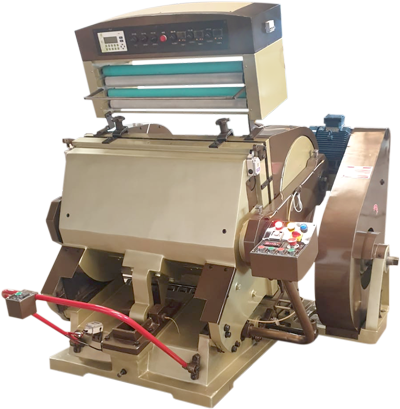

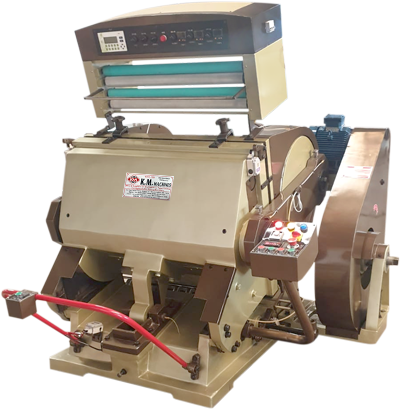

K. M. Machines India Die Cutting Machine with Hot Foil Attachment is used for hot foil or leaf printing as well as die cutting on paperboard. Silver, gold foil printing, hot embossing, de embossing, die cutting, creasing, dry embossing, punching with high precision can be achieved by this machine. K. M. Machines India Hot Foil Press is known for its durability, accuracy and consistency.
Innovation of modern printing and packaging industry. It is at the heart of folding cartons industry. It meets the demand of foil printing on mono-cartons in industries of medicines, cosmetics, garments, smartphones, electronics, sarees , food and other paper products like book titles, greeting cards, presentations cards, wedding cards and religious books.
Addressing the demand of modern world our machines full fill demand of national and international users in huge way and mark its presence at every corner where printing is done with the time these machines has added exclusive features of foil timing facility with computer arrangement and stepper drive to minimize the wastage of foil and full usage of foil film.
Platen Size |
25"x35" |
28"x40" |
31"x43" |
Inside Chase |
22"x32" |
25"x37" |
28"x40" |
Heating Area |
18"x23" |
19"x25" |
20"x30" |
Output/ |
1800 |
1600 |
1500 |
Pressure Exerted (In Ton) |
190 |
250 |
275 |
Power (HP) |
3 |
5 |
7.5 |
Floor Space |
60"x50" |
65"x55" |
65"x55" |
Weight |
3900kg. |
5000kg. |
5200kg. |
Additional load heater (SHF/ SHF Plus) | 5.5/8 | 5.5/10 | 5.5/12 |
