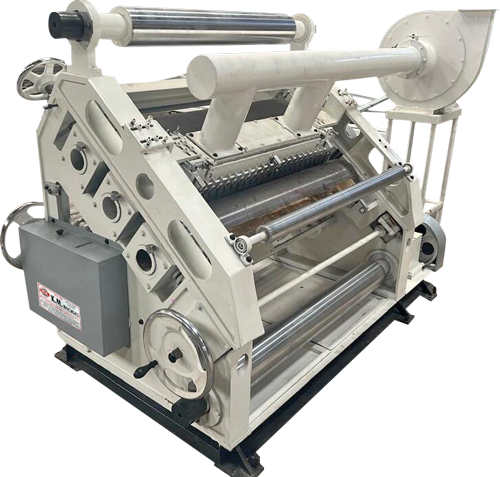

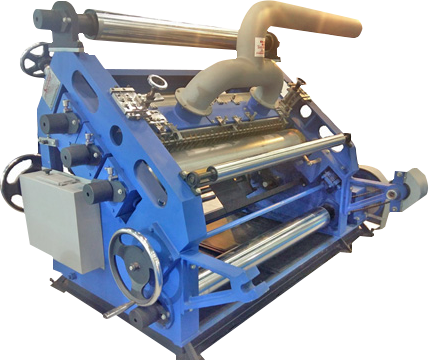

KM Fingerless High Speed Oblique type single facer Paper Corrugating Machine (Bearing Mounted) finds place in top packaging houses around the globe due to its superior built, durability, high rate of production as well as staggeringly low maintenance costs
Oblique type High Speed model offers a high rate of production on the roller bearing for smooth running and longer life. The machine is fitted with gear box which runs in oil bath. The machine is provided with hydraulic self loading twin shaft reel stand and 2 pre heating cylinders. Variable speed dive and slithering blades are optional with the machine
| Size | 42” | 52” | 62” | 66” | 72" | 75" | 80" |
| Power (HP) | 9.5 | 9.5 | 9.5 | 12 | 13 | 13 | 13 |
| Power for Blower (HP) | 7.5 | 7.5 | 10 | 10 | 15 | 15 | 15 |
| Speed (m/min) | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Heating load (kw) | 40 | 42 | 42 | 45 | 48 | 48 | 48 |
| Pre-Heater Load (KW) | 6 | 6 | 8 | 8 | 10 | 10 | 10 |
