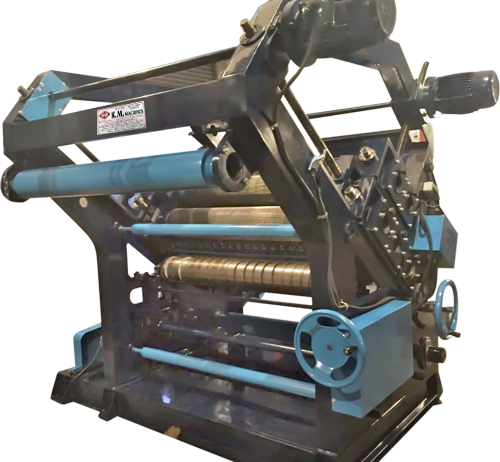

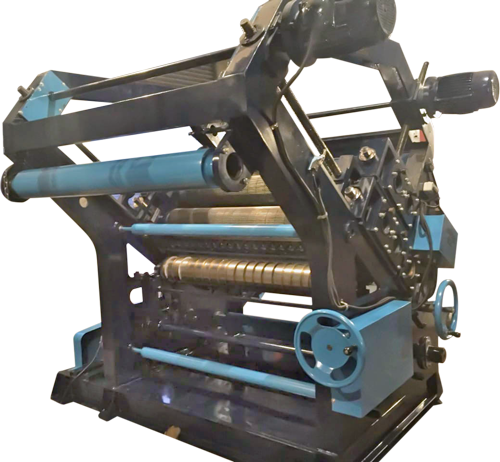

Double Profile Single Face Corrugation Machine with bearing mounted rolls. Saves precious space in factory
Machine is supplied with two sets of any two types of flute roll
Immediate & trouble-free change over of fluting medium in just five minutes
Motorized lifting & lowering of fluting roll assembly.
The machine is recommended to be used on steam heating or thermic fluid heating.
| Size | 42 | 52 | 62 | 72 | 84 |
|---|---|---|---|---|---|
| Motor (H.P.) | 9 | 11.5 | 11.5 | 14 | 16.5 |
| Heating Load KW | 19 | 18 | 21 | 25 | 25 |
| Wt. Approx. | 5 | 5.5 | 6 | 6.5 | 7.5 |
| Floor Space | 7.5×15 | 8.5×15 | 9.5×15 | 10.5'×15 | 11'×18 |
